Installing the coolant line from the coolant radiator to the heat management module

• Check sealing ring (1) of coolant line (2) for damage and, if necessary, replace it.

  Courtesy of BMW OF NORTH AMERICA, INC.

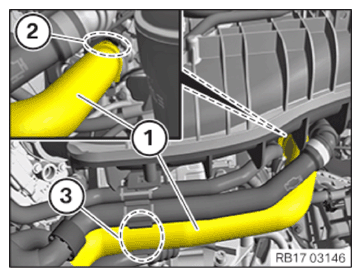

• Insert the coolant line (1) and connect in the marked area (2) and lock it.

  The coolant line (1) must engage audibly.

• Secure coolant line (1) into the holder in the marked area (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

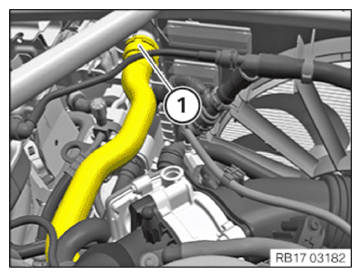

• Connect and lock coolant line (1).

  The coolant line (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING CONTROL UNIT BRACKET .
• Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to CLOSING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
