Install heat management module

CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!

Route the positive battery cable without abrasions and do not trap.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

Route all cables without abrasions, do not trap and crush.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

Courtesy of BMW OF NORTH AMERICA, INC.

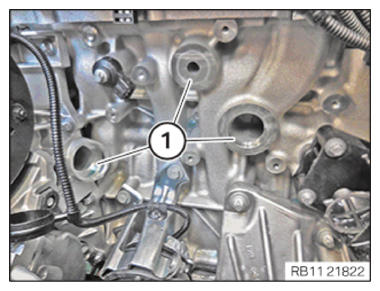

Clean sealing surfaces (1).

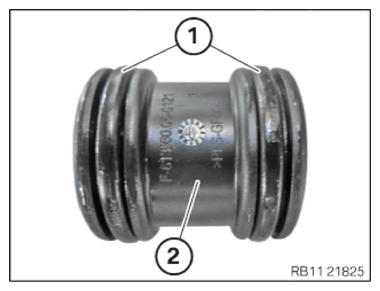

Replace sealing rings (1) on connecting pipe (2).
Parts: Sealing ring
Coat sealing rings (1) with coolant before installing.

Courtesy of BMW OF NORTH AMERICA, INC.

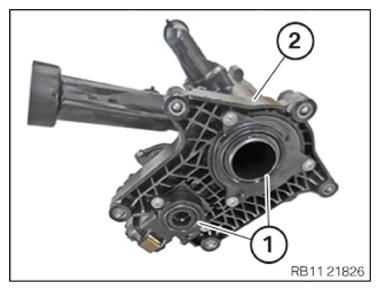

Replace sealing rings (1) on heat management module (2).
Parts: Sealing ring
Coat the sealing rings (1) on the heat management module (2) with coolant before installing.

Courtesy of BMW OF NORTH AMERICA, INC.

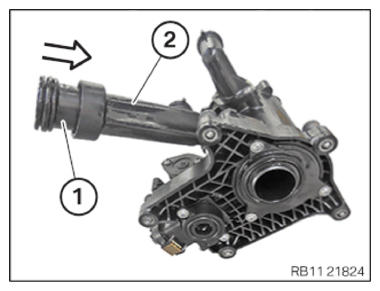

Guide in and install the connecting pipe (1) in the arrow direction on the heat management module (2).

Courtesy of BMW OF NORTH AMERICA, INC.

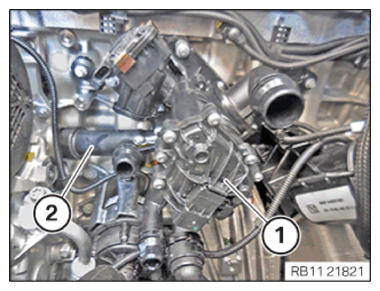

Insert and install the heat management module (1) with the connecting pipe (2).
Make sure that the connecting pipe (2) is installed correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

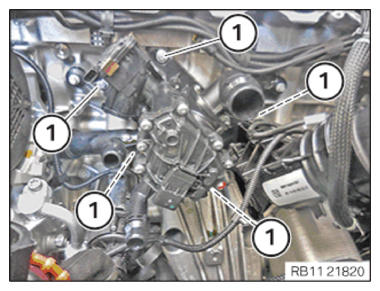

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Heat exchange module to crankcase
M6	Tightening torque	9 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

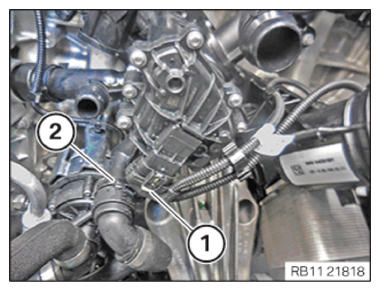

Connect and lock the connector (1).
Make sure the connector (1) engages audibly.
Feed in and install coolant line (2).
Make sure that the coolant line (2) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

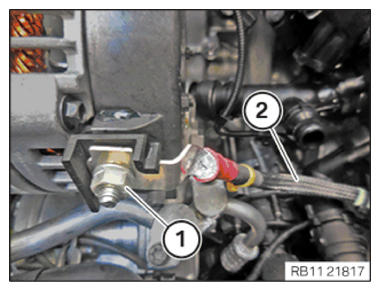

Insert and install the positive battery cable (2).

Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Positive battery cable to the alternator
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

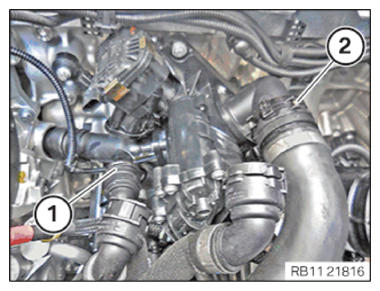

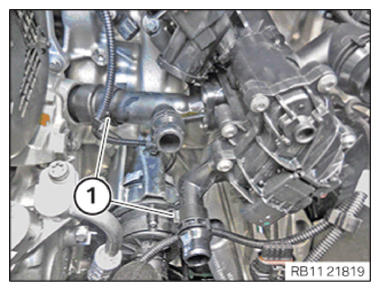

Connect and lock coolant lines (1) and (2).
Make sure that the coolant lines (1) and (2) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

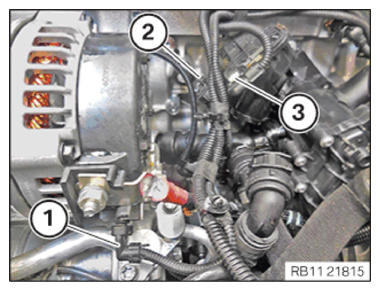

Connect the connector (3) on the heat management module, and lock it.
Connect the connector (2) on the knock sensor and lock.
Connect and lock the connector (1) to the alternator.
Make sure that the connectors (1) (2) and (3) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

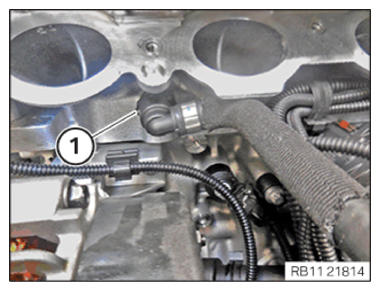

Connect and lock coolant line (1).
Make sure that the coolant line (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

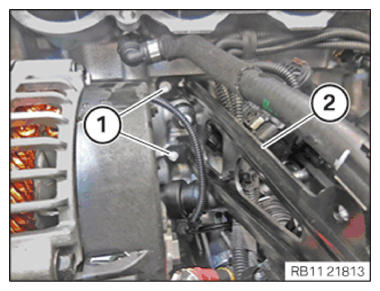

Feed in the support (2) for the intake plenum and install it.

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Support to cylinder head
M6X16	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

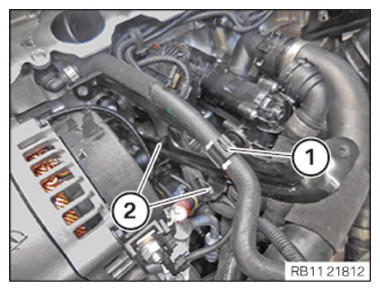

Secure clamps (1).
Secure clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE INTAKE PLENUM .
Refer to INSTALLING THE TANK VENT VALVE .
Refer to INSTALLING CONTROL UNIT BRACKET .
Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
Refer to INSTALLING THE DME CONTROL UNIT .
Refer to INSTALLING INTAKE FILTER HOUSING .
Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
Refer to ACTIVATING ELECTRICAL SYSTEM .
Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
Refer to INSTALLING ACOUSTIC COVER AT REAR .
Refer to INSTALLING THE REAR HOOD SEAL .
Refer to INSTALLING ACOUSTIC COVER .
Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
