Install the instrument cluster control unit (KOMBI)

• Connect the connector (1) to the instrument cluster (KOMBI) control unit (2) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the instrument cluster (KOMBI) control unit (1) in the guides (2), inserting correctly from below.

Courtesy of BMW OF NORTH AMERICA, INC.

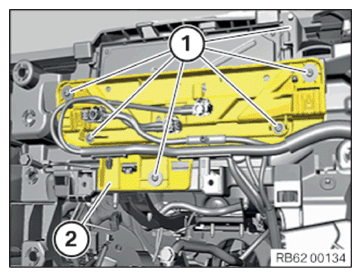

• Position the control unit bracket (2).
• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE INSTRUMENT CLUSTER .
• Refer to INSTALLING THE GAP COVER .
• Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
