Installing the instrument cluster
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.
- Protect surfaces from damage.
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.

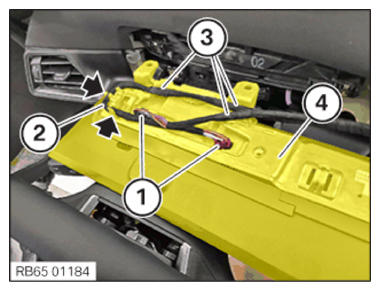

- Feed in the instrument cluster (4) and position it.
- Clip in all cable brackets (3).
- Feed the cable (2) into the holders (arrows).
- Connect all connectors (1) and lock.NOTE: TECHNICAL INFORMATION

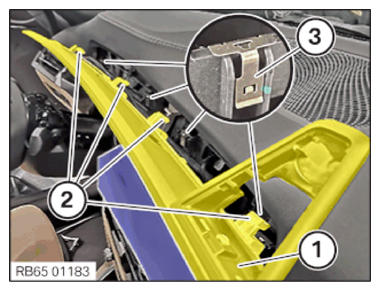

Conduct the following operation with the assistance of a second person. - Replace clamps (3).
Parts : Clamps
- Feed the instrument cluster (1) with the hook (2) on to the clamps (3).
- Position the instrument cluster (1) correctly.

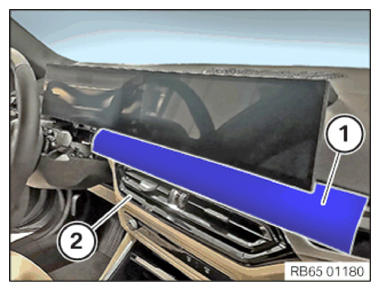

- Remove the plastic adhesive tape (1) from the decorative strip (2).

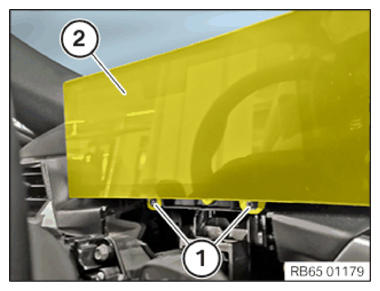

- Replace screws (1).
Parts : Screws
- Tighten screws (1) on the instrument cluster (2).TIGHTENING TORQUES SPECIFICATION

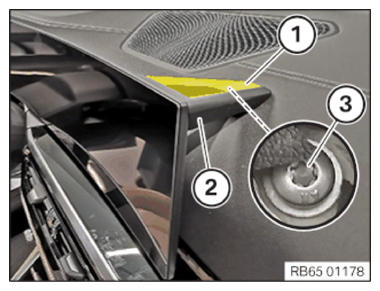

Instrument cluster to the lower section of the instrument panel Screw Tightening torque 3.5 Nm - Replace the screw (3).
Parts: Screw
- Tighten down screw (3).TIGHTENING TORQUES SPECIFICATION
Instrument cluster to the lower section of the instrument panel Screw Tightening torque 3.5 Nm - Clip in the cover (1) at the instrument cluster (2).
Follow-up work
- Refer to INSTALLING THE GAP COVER .
- Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
