Installing the gap cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

NOTE: The steps shown on one side must be performed on both sides.

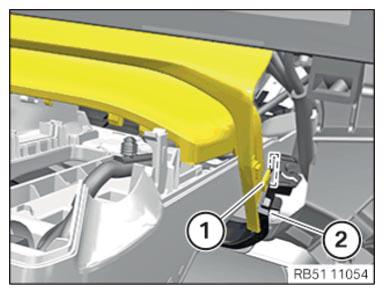

Make sure that the guides (1) below at the gap cover are correctly maneuvered into the marked areas on the frame (2).

Courtesy of BMW OF NORTH AMERICA, INC.

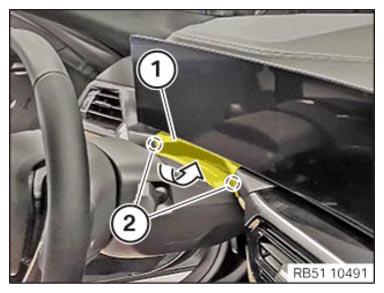

Guide in and install gap cover (1) in the arrow direction.
Clip in gap cover (1) at the marked points (2).

Courtesy of BMW OF NORTH AMERICA, INC.
