Remove the backrest cover from front seat-backrest
Preliminary work
- Refer to REMOVING FRONT SEAT .
- Refer to REMOVING THE FRONT HEAD RESTRAINT .
- Refer to REMOVING GUIDE SLEEVE FOR HEADREST .
- Refer to REMOVING OUTER COVER ON FRONT SEAT .
- Refer to REMOVING INNER COVER ON FRONT SEAT .
- Refer to REMOVING THE COVER FOR THE BACKREST RELEASE .
- Refer to REMOVING REAR PANEL ON THE FRONT SEAT BACKREST .
- Refer to REMOVING THE BACKREST COVER WITH THE UPHOLSTERY FOR THE FRONT SEAT .

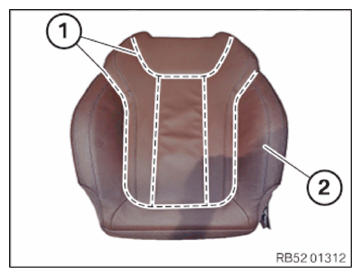

- Loosen all clamp on the trim wires (1) .
- Remove the backrest cover (2) from the upholstery.
- Completely remove clamps from the backrest cover (2) and the cushion.
