Removing rear panel on the front seat backrest

NOTE: Description is for left component only. Procedure on the right side is identical.

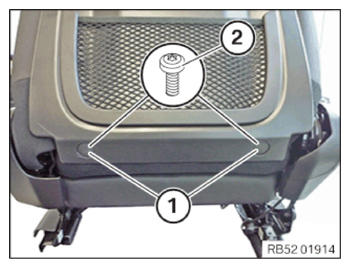

• Unclip the cover caps (1) with a suitable tool.
• Loosen screws (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

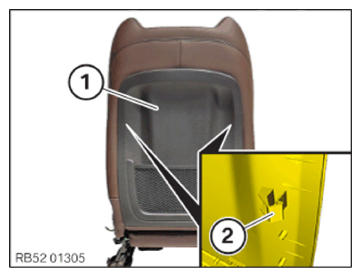

• Slip the rear panel downwards (1) and pull it out along the guides (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

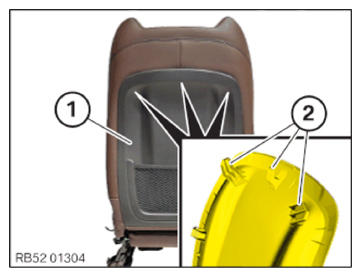

• Unclip and remove the rear panel (1) on the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
