Installing the front bumper cover support
NOTE:
Perform the steps on the right and left side.

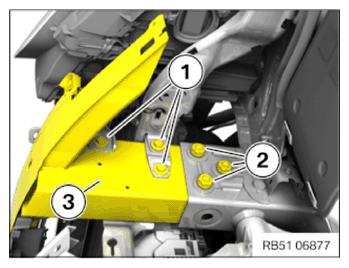

- Feed in and position the support for the front bumper cover (3) .
- Tighten down screws (2) .
- Tighten down screws (1) .
- Connect all connectors and lock.
NOTE:
Perform the steps on the right and left side.

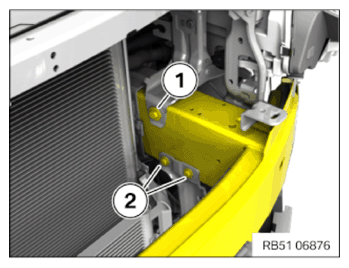

- Tighten down screw (1) .
- Tighten down screws (2) .
Follow-up work
- Refer to PARTIALLY INSTALLING THE LEFT AND RIGHT EXTERNAL RADIATOR .
- Refer to PARTIALLY INSTALLING THE WIRING HARNESS FOR THE FRONT END .
- Refer to INSTALLING THE AIR DUCT AT THE SIDE .
- Refer to INSTALLING REINFORCEMENT STRUT .
- Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to INSTALLING THE LEFT AND RIGHT FANFARE HORN .
- Refer to INSTALLING THE AIR DUCT AT THE BOTTOM .
- Refer to IF INSTALLED: INSTALLING FRONT RADAR SENSOR (FRS) WITH BRACKET .
- Refer to INSTALLING THE PEDESTRIAN PROTECTION SENSOR .
- Refer to INSTALLING TOPPING AIR DUCT .
- Refer to INSTALLING FRONT BUMPER COVER .
- Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
- Refer to PARTIALLY INSTALLING BOTH FRONT WHEEL ARCH COVERS .
- Refer to INSTALLING CENTER RADIATOR GRILLE .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
- Refer to ADJUSTING THE FRONT RADAR SENSOR (FRS) .
- Refer to ADJUSTING HEADLIGHTS .
