Installing brake ventilation duct
NOTE:
Procedure shows left component only. Procedure on the right side is identical.

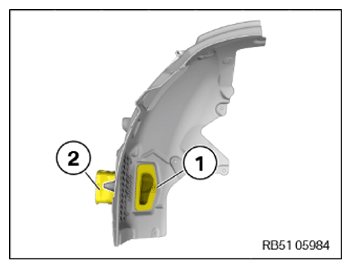

Position the brake ventilation duct (2) .
Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATION
| Brake ventilation duct on front wheel arch cover front section | ||
|---|---|---|
| Hexagon bolt for thermoplastic | Tightening torque | 3 Nm |
Follow-up work:
- Refer to INSTALLING THE FRONT LEFT OR RIGHT WHEEL .
