Install center armrest

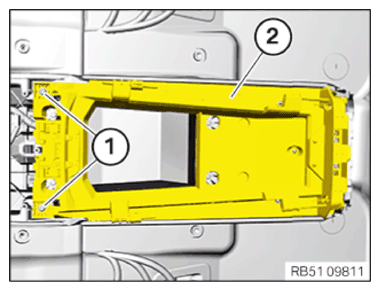

- Attach the center armrest (2) and connect the corresponding connector.
- Feed the center armrest (2) at the rear into the guides.
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Center console | ||
|---|---|---|
| Oval-head screw | Tightening torque | 3 Nm |
Follow-up work
- Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING THE CENTER ARMREST LOCK .
- Refer to INSTALLING THE VENTILATION GRILLE IN THE REAR .
- Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
