Installing the operating facility in the center console

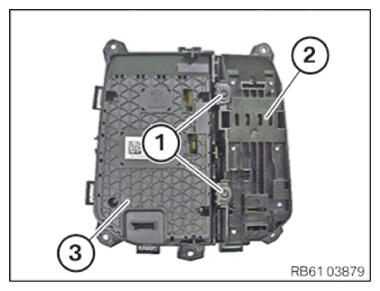

• Correctly position the operating facility in the center console (2)  on the Controller (3)  .
• Tighten the screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

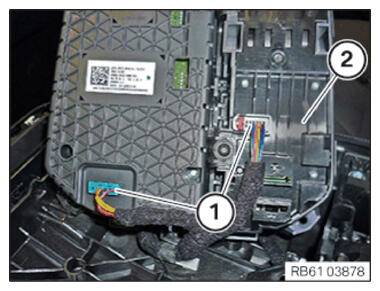

• Connect and lock both connectors (1)  with operating unit in the center console (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

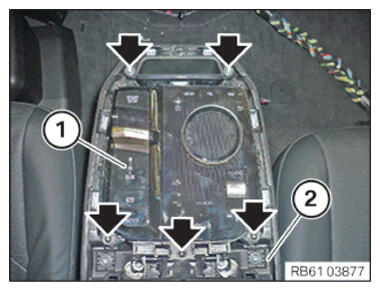

• Position the operating facility in the center console (1)  in the center console (2)  .
• Tighten screws (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to INSTALLING THE CENTER ARMREST LOCK .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
