Body Equipment (1 Of 2) -- Repair (IX)
>>
51 16 Mirrors, Consoles, Interior Trim
>>
51 16 325 Removing and installing/replacing the lock for center armrest
>>
Installing the center armrest lock
Installing the center armrest lock

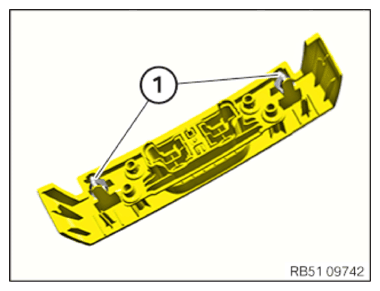

Check the clamps
(1)
and replace if necessary.
Courtesy of BMW OF NORTH AMERICA, INC.

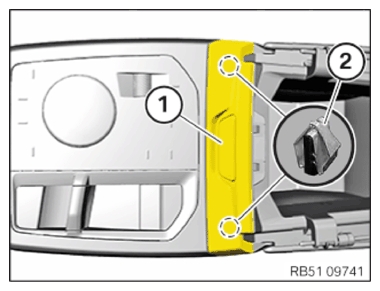

Install the lock
(1)
and engage it at the clamps
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
