Installing the ventilation grille in the rear

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components  .
Scratches, surface damage  .

• Protect working area.
• Handle tools and components carefully.

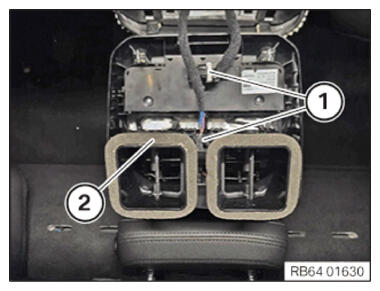

• Position the ventilation grille (2)  .
• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

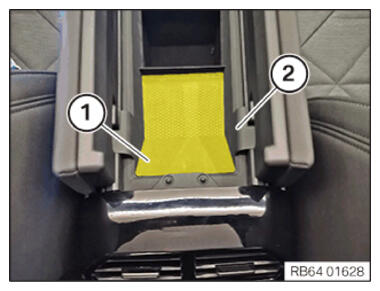

• Install the insert mat (1)  in the center console (2)  and press downwards.

  Courtesy of BMW OF NORTH AMERICA, INC.

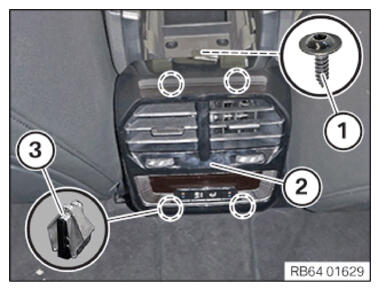

• Check the clamps (3)  for damage and replace if necessary.
• Install the ventilation grille (2)  and clip it in at the clamps (3)  .
• Tighten down screw (1)  .

TIGHTENING TORQUES SPECIFICATIONS

Ventilation grille on center console
Screw	Tightening torque	1.8 Nm
