Remove the rear side window
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" .
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" .
NOTE:
TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS .
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE BACKREST SIDE SECTION WITH THE AIRBAG .
- Refer to REMOVING THE LUGGAGE COMPARTMENT COVER .
- Refer to REMOVING THE SEAT BELT FINISHER STRIP .
- Refer to REMOVING C-PILLAR TRIM PANEL .
- Refer to REMOVING THE REAR WINDOW STORAGE SHELF AT FRONT .
- Refer to REMOVING HINGE COVER .
- Refer to REMOVING THE D-PILLAR TRIM PANEL .
- Refer to REMOVING THE OUTER B-PILLAR TRIM PANEL .
- Refer to REMOVING THE TRIM FROM THE REAR QUARTER PANEL .
- Refer to REMOVING THE DECORATIVE TRIM .
- Refer to REMOVING THE TRIM STRIP AT THE TOP SIDE WINDOW .
- Refer to REMOVING THE TRIM STRIP FROM THE REAR SIDE WINDOW .
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.
- Disconnect plug connection (1) .
NOTE:
When removing the side window out, make sure that the cable is not damaged.

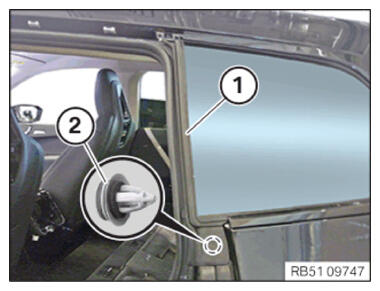

- Release the seal (1) at the clip (2) and carefully detach it to the front from the side window.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

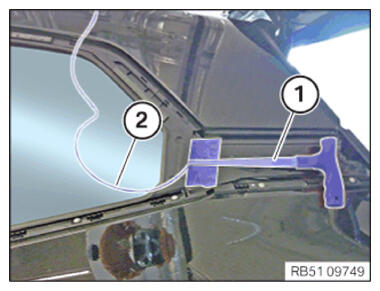

- By using the line threader (1)
, pierce the separating cord (2) 5 A08 569
as shown through the adhesive bead and feed it in.

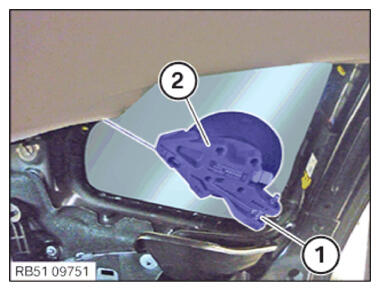

- Feed in and coil the separating cord (1) 5 A08 569 at the removal tool (2) .
- Secure the removal tool (2)
as shown.
- Lay the separating cord (1) 5 A08 569 circumferentially in a clockwise direction on the adhesive area of the separating cord behind the seals.

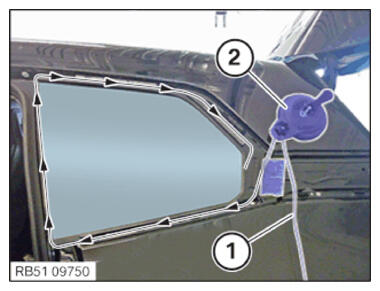

- Attach the anchor suction cup (2) as shown to the side panel.
- Attach the separating cord (1) 5 A08 569 with the knurled screw of the anchor suction cup (2) .
- Separate the side window glass with the Spider.
Do not damage the seal of the side window glass!
NOTE:
The separating tool must be repositioned repeatedly to prevent damage on the vehicle and the tool!
