Replacing the front module bracket
Preliminary work
- Refer to DEACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
- Refer to REMOVING THE TRIM FOR THE EMERGENCY OPERATION .
- Refer to REMOVING THE DECORATIVE STRIP ON THE FRONT DOOR TRIM PANEL .
- Refer to REMOVING FRONT DOOR TRIM PANEL .
- Refer to REMOVING THE FRONT MODULE BRACKET .

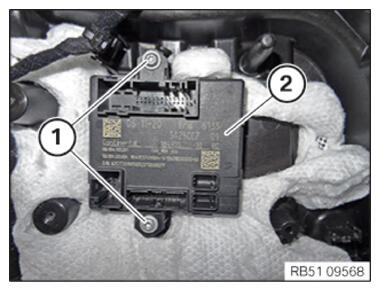

- Loosen screws (1) .
- Remove control unit (2) .
- Install the control unit (2) on the new module bracket.
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Control unit of the door on sound insulation | ||
|---|---|---|
| Screw | Tightening torque | 2 Nm |
Removing airbag sensor from the front door
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

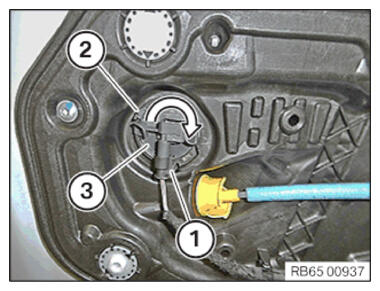

- Unlock plug connection (1) and disconnect.
- Unlock the lock (2) with care.
- Turn the airbag sensor (3) on the front door in the arrow direction and remove it.
- Replace the module bracket.
Parts: Module bracket
Installing airbag sensor in the front door
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

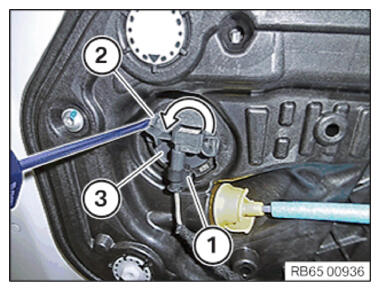

- Position airbag sensor (3) on the front door and lock in the arrow direction.
- Lock the lock (2) .
- Connect connectors (1) and lock.
Remove the loudspeaker on the front door

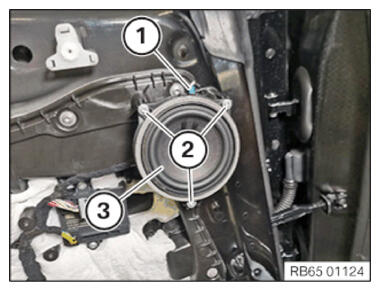

- Disconnect plug connection (1) .
- Unscrew the screws (2) and remove the loudspeaker (3) .
Installing the loudspeaker on the front door
- Position the speaker (3) .
- Replace screws (2)
.
Parts: Screws
- Tighten the screws (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Speaker to door/trim panel | ||
|---|---|---|
| Screw | Tightening torque | 2 Nm |
- Connect connector (1) .
Follow-up work
- Refer to INSTALLING THE FRONT MODULE BRACKET .
- Refer to INSTALLING THE FRONT DOOR TRIM PANEL .
- Refer to INSTALLING THE DECORATIVE STRIP ON THE FRONT DOOR TRIM PANEL .
- Refer to INSTALLING THE TRIM FOR THE EMERGENCY OPERATION .
- Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
