Installing the front door trim panel

• Check the clips and (1)  replace them as needed.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove adapter (1)  of the door upwards from holder (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

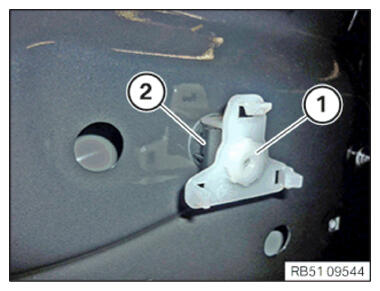

• Clip adapter (1)  into the door trim panel as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the door trim panel.
• Press the inner door handle in the closed direction.
• Feed in the Bowden cable (2)  and clip it in at the detent (1)  .
• Connect and lock the present connectors.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the door trim panel (1)  correctly and engage it at the clamps (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the door trim panel (1)  at the clips (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Install covers (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DECORATIVE STRIP ON THE FRONT DOOR TRIM PANEL .
• Refer to INSTALLING THE TRIM FOR THE EMERGENCY OPERATION .
