Remove front door trim panel

Preliminary work

• Refer to REMOVING THE TRIM FOR THE EMERGENCY OPERATION .
• Refer to REMOVING THE DECORATIVE STRIP ON THE FRONT DOOR TRIM PANEL .

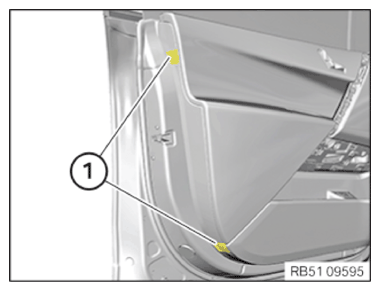

• Remove the covers (1)  with suitable tool.

  Courtesy of BMW OF NORTH AMERICA, INC.

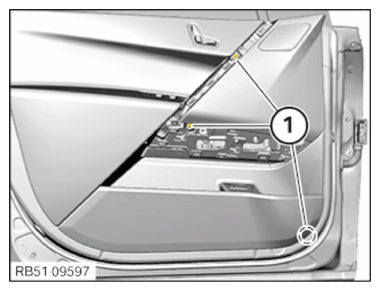

• Loosen screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

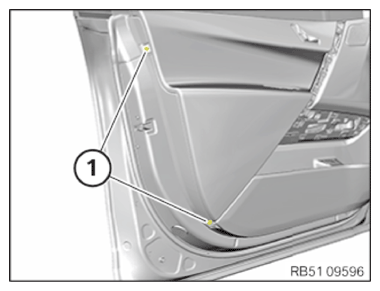

• Loosen screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

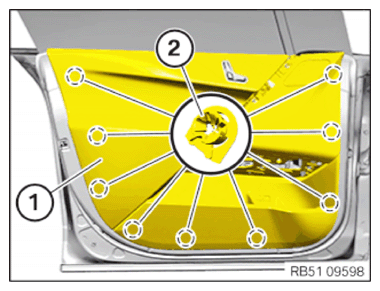

• Unclip the door trim panel (1)  with the special tool 0 496 569 (00 9 325) at the clips (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

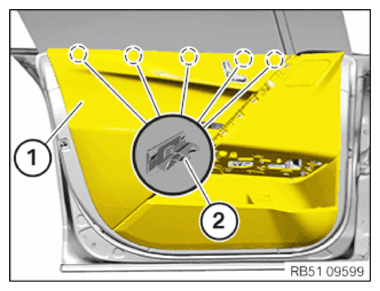

• Release the door trim panel (1)  inwards at the clamps (2)  .
• Feed out the door trim panel (1)  and pull it away slightly.

Courtesy of BMW OF NORTH AMERICA, INC.

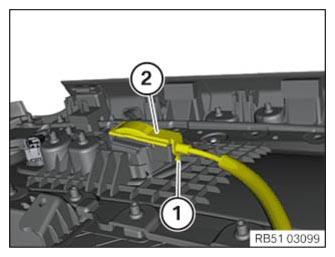

• Release the locking mechanism (1)  and remove the Bowden cable (2)  toward the top.

  The Bowden cable (2)  feeds out on its own.

• Unlock the available plug connection and disconnect it.
• Remove door trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.
