Replacing the rear emblem

Preliminary work

• Refer to REMOVING REAR DECK .
• Refer to REMOVING THE TRIM FOR THE TOP REAR WINDOW FRAME .
• Refer to REMOVING THE TRIM ON THE REAR WINDOW FRAME ON THE LEFT AND RIGHT SIDE .
• Refer to REMOVING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to REMOVING THE SWITCH FOR AUTOMATIC TAILGATE OPERATION .
• Refer to REMOVING TAILGATE TRIM PANEL .
• Refer to REMOVING THE REAR EMBLEM .

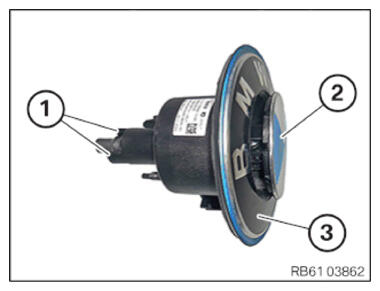

Removing the spray nozzle for the rearview camera

• Loosen the detents (1)  .
• Pull out the spray nozzle for rearview camera (2)  from emblem (3)  .

Courtesy of BMW OF NORTH AMERICA, INC.

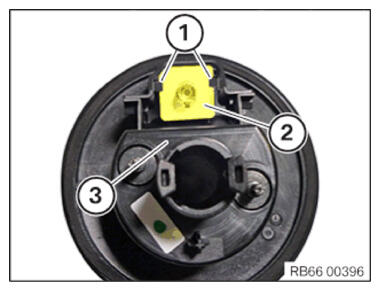

Removing the rear UCAP

• Unlock the locks (1)  .
• Guide out and remove UCAP (2)  from emblem (3)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the emblem.

Parts:  Emblem

Installing the rear UCAP

• Guide UCAP (2)  in emblem (3)  and position it properly.
• Lock the locks (1)  .
• Check the correct and firm end position of the camera and correct it if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the spray nozzle for the rearview camera

• Position the spray nozzle for the rearview camera (2)  in the emblem (3)  and engage in the detents (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR EMBLEM .
• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to INSTALLING THE SWITCH FOR THE AUTOMATIC TAILGATE OPERATION .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to INSTALLING THE TRIM ON THE SIDE REAR WINDOW FRAME ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
• Refer to INSTALLING THE REAR STORAGE SHELF .
