(Installing the trim on the side rear window frame on the left and right)

NOTE: Description is for left component only. Procedure on the right side is identical.

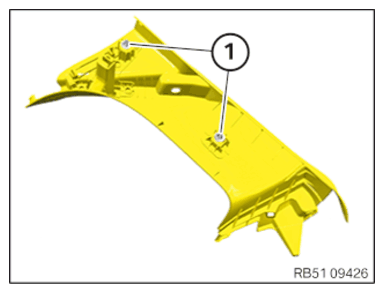

Check the clips (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

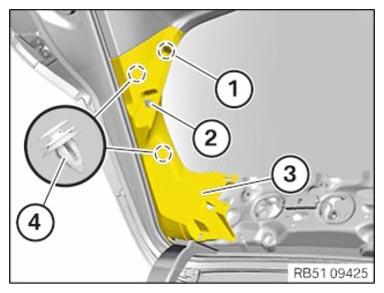

Position trim (3) correctly and clip it into clips (4).

Tighten down screw (1).

(TIGHTENING TORQUES SPECIFICATIONS)

Trim panel for rear window frame
4.2x16 bolt	Tightening torque	1.2 Nm
Ball pin	Tightening torque	9 Nm

Tighten ball hubs (2).

(TIGHTENING TORQUES SPECIFICATIONS)

Trim panel for rear window frame
4.2x16 bolt	Tightening torque	1.2 Nm
Ball pin	Tightening torque	9 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
