51 49 Tailgate Trim Panel, Rear Window Trim
>>
51 49 015 Remove and attach/replace the trim for the top rear window frame
>>
Remove the trim for the top rear window frame
Remove the trim for the top rear window frame

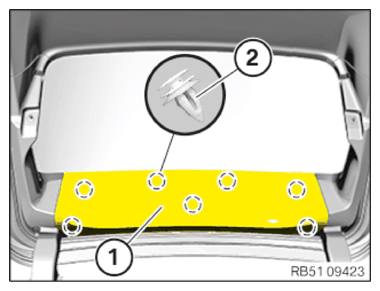

Detach the trim
(1)
with the special tool
0 496 569 (00 9 325)
at the clips
(2)
and remove it.
