Installing the rear trim
- Check all mounting elements on the rear trim (1)
for damage and replace if necessary.

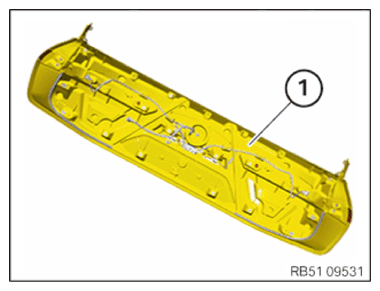

- Attach the rear trim (1) and feed the wiring harness into the tailgate.

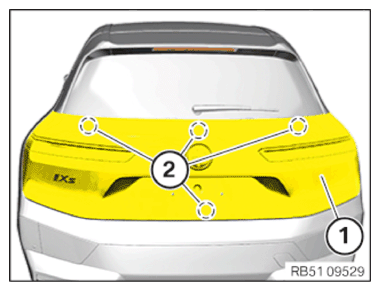

- Position the rear trim (1) correctly and engage it in the clips (2) .
NOTE:
Perform the steps on the right and left side.

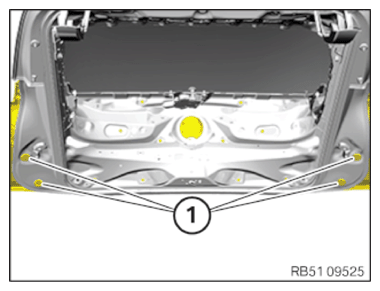

- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Rear trim to trunk lid | ||
|---|---|---|
| Oval-head screw | Tightening torque | 3.1 Nm |
| hexagon nut M5 | Tightening torque | 4.6 Nm |

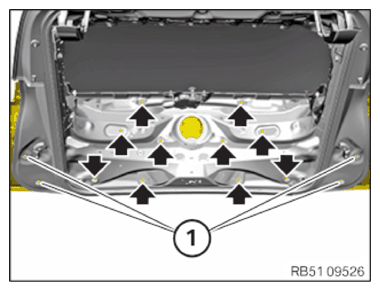

- Tighten the screws (1) and nuts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Rear trim to trunk lid | ||
|---|---|---|
| Oval-head screw | Tightening torque | 3.1 Nm |
| hexagon nut M5 | Tightening torque | 4.6 Nm |

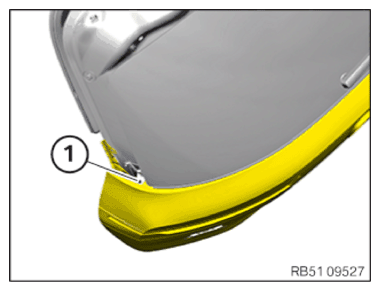

- Mount the covers (1) .

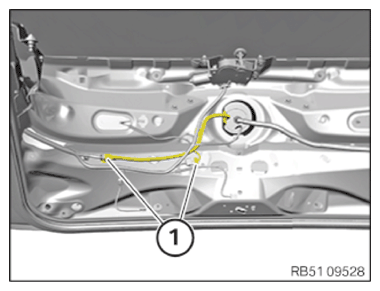

- Connect and lock both connectors (1) .
Follow-up work
- Refer to INSTALLING THE REAR EMBLEM .
- Refer to INSTALLING LOWER PART OF REAR SPOILER .
- Refer to INSTALLING REAR SPOILER .
- Refer to INSTALLING THE TAILGATE TRIM PANEL .
- Refer to INSTALLING THE SWITCH FOR THE AUTOMATIC TAILGATE OPERATION .
- Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
- Refer to INSTALLING THE TRIM ON THE SIDE REAR WINDOW FRAME ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
- Refer to INSTALLING THE REAR STORAGE SHELF .
