Install rear spoiler

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

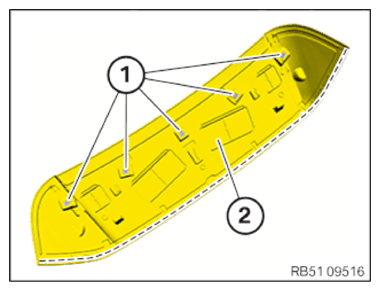

Check the mounting elements (1) for damage and replace as needed.
Check all detents of the rear spoiler (2) along the dashed line and replace as needed.

Courtesy of BMW OF NORTH AMERICA, INC.

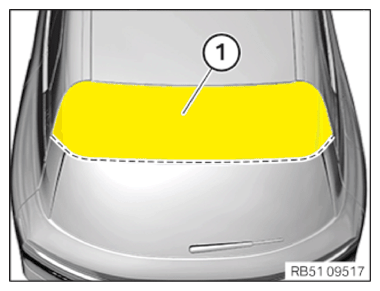

Install the rear spoiler (1) and position it correctly.
Engage the rear spoiler (1) at all detents along the dotted line.

Courtesy of BMW OF NORTH AMERICA, INC.

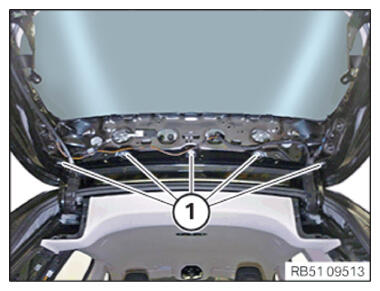

TIGHTENING TORQUE SPECIFICATIONS

REAR SPOILER
Oval-head screw	Tightening torque	3.1 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

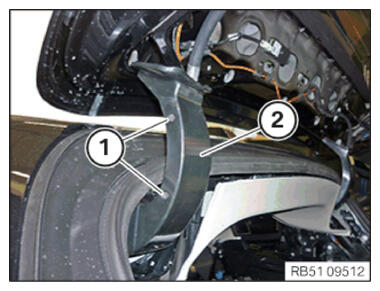

NOTE: Perform the steps on the right and left side.

TIGHTENING TORQUE SPECIFICATIONS

Hinge cover on hinge
Flat-head screw	Tightening torque	1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
