Replacing the rear bumper cover

NOTE: TECHNICAL INFORMATION
To ensure the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may only be repainted in compliance with the following instructions:
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning lamp is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to REMOVING REAR UNDERBODY SHIELD .
Refer to REMOVING THE CENTER DIFFUSER .
Refer to REMOVING THE LEFT AND RIGHT DIFFUSERS .
Refer to REMOVING THE REAR BUMPER PANEL .

Removing the trim on the bumper cover at the rear left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing the trim on the rear bumper panel

Release the trim (1) at all detents (arrows) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the rear left and right bumper trim

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing rear bumper trim

Release the bumper trim (1) at all the detents (arrows) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the tail light on the bumper cover on the left and right

WARNING: Work on components with requirements for a secure energy supply.
Ensure proper function after a repair.

Lines are allowed to have only one repair area.
Notices in the diagnostic system circuit diagrams must be observed.
Refer to NOTES ON THE CONTENT AND HANDLING OF DIAGNOSIS INFORMATION .

When components are replaced, any applicable notes in the BMW parts catalogue must be observed.

NOTE: Description is for left component only. Procedure on the right side is identical.

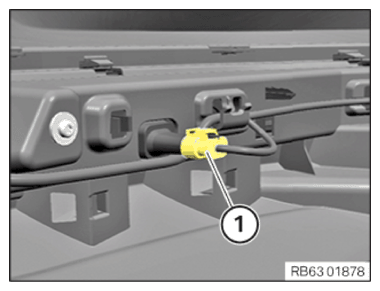

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

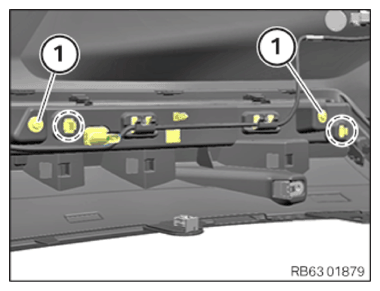

Loosen screws (1) .
Release the detents in the marked area.
Feed the tail light out of the bumper cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the rear bumper cover.

Parts: Bumper cover, rear

Installing tail light on bumper cover at the left and right

WARNING: Work on components with requirements for a secure energy supply.
Ensure proper function after a repair.

Lines are allowed to have only one repair area.
Notices in the diagnostic system circuit diagrams must be observed.
Refer to NOTES ON THE CONTENT AND HANDLING OF DIAGNOSIS INFORMATION .

When components are replaced, any applicable notes in the BMW parts catalogue must be observed.

NOTE: Description is for left component only. Procedure on the right side is identical.

Check the detents on the tail light (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the tail light on the bumper.
Lock the detents correctly in place in the marked area.
Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Tail light to bumper cover
Screw	Tightening torque	2.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the rear left and right bumper trim

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the rear bumper trim

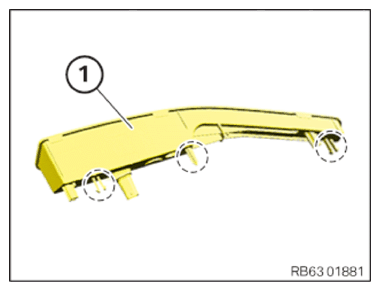

Check if all the detents (arrows) are present on the bumper trim (1) and if they are damaged; if necessary, replace the bumper trim (1) .
Install the bumper trim (1) and engage it at all detents (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the trim on the rear left and right bumper cover

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the trim on the rear bumper panel

Check all detents (arrows) on the trim (1) for damage, replace the trim (1) if necessary.
Install the trim (1) and engage it at all detents (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

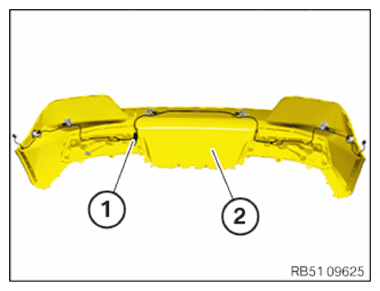

Remove the wiring harness (1) with all ultrasonic sensors and remount on the bumper cover lower section (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Position the bumper cover lower section (1) correctly on the bumper cover upper section and snap it in at the locks along the dotted line.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE REAR BUMPER COVER .
Refer to INSTALLING THE LEFT AND RIGHT DIFFUSER .
Refer to INSTALLING THE CENTER DIFFUSER .
Refer to INSTALLING THE REAR UNDERBODY PANELLING .
Refer to PUTTING THE REAR RADAR SENSOR SHORT RANGE LEFT AND RIGHT INTO OPERATION .
