Remove the center diffuser

Preliminary work

• Refer to REMOVING REAR UNDERBODY SHIELD .

Precondition

Rear undershield is removed.

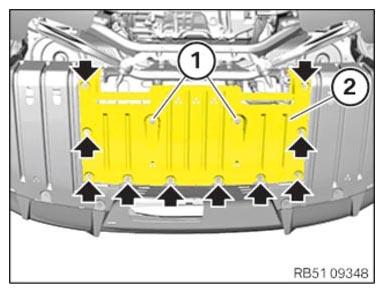

• Remove screws (arrows).
• Release nuts (1)  .
• Guide out and remove the diffuser (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.
