Installing the bumper cover upper section (M Aerodynamics package)

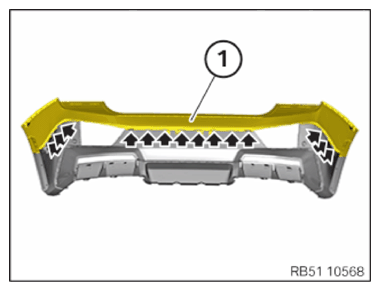

• Position the bumper cover upper section (1)  on the detents (arrows) and snap it in.

  Courtesy of BMW OF NORTH AMERICA, INC.

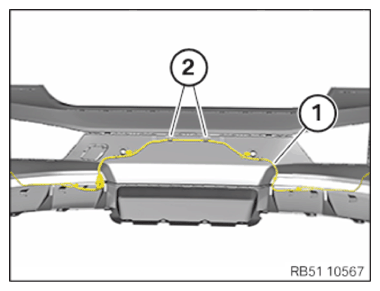

• Hook the wiring harness (1)  onto the holders (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM OF THE LEFT AND RIGHT BUMPER COVER (M AERODYNAMICS PACKAGE) .
• Refer to INSTALLING THE HOLDER FOR THE LEFT AND RIGHT TAIL LIGHT (M AERODYNAMICS PACKAGE) .
• Refer to INSTALLING THE REAR BUMPER COVER .
• Refer to INSTALLING THE LEFT AND RIGHT DIFFUSER .
• Refer to INSTALLING THE CENTER DIFFUSER .
• Refer to INSTALLING THE REAR UNDERBODY PANELLING .
• Refer to PUTTING THE REAR RADAR SENSOR SHORT RANGE LEFT AND RIGHT INTO OPERATION .
