(Installing the holder for the left and right tail light (M Aerodynamics package))

NOTE: Perform the steps on the left and right side.

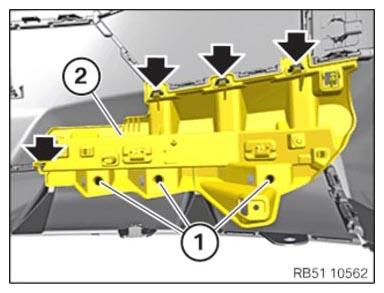

• Position the holder for the tail light (2) on the detents (arrows) and snap it in.
• Secure expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

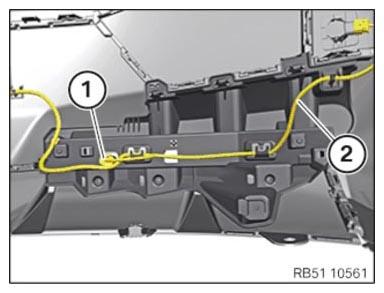

• Connect plug connection (1) and lock.
• Hook and clip the wiring harness (2) into all the holders.

Courtesy of BMW OF NORTH AMERICA, INC.
