Installing the seal of the rear trim

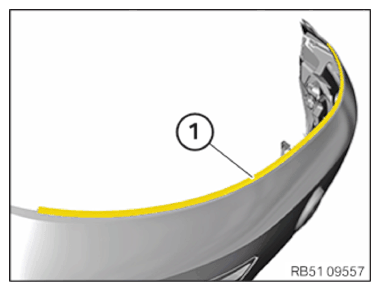

• Align seal (1)  in the middle and insert it on the rear trim.

  Ensure that seal (1)  fits correctly on the rear trim.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR TRIM .
• Refer to INSTALLING THE REAR EMBLEM .
• Refer to INSTALLING LOWER PART OF REAR SPOILER .
• Refer to INSTALLING REAR SPOILER .
• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to INSTALLING THE SWITCH FOR THE AUTOMATIC TAILGATE OPERATION .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to INSTALLING THE TRIM ON THE SIDE REAR WINDOW FRAME ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
• Refer to INSTALLING THE REAR STORAGE SHELF .
