Installing the rear top center console trim
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
- Check the clamps (1)
and replace if necessary.

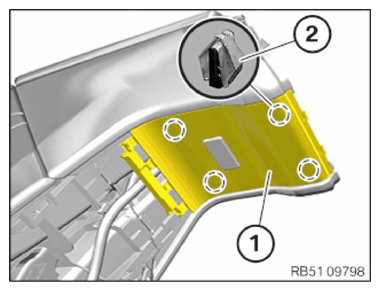

- Guide in the center console trim (1) and connect the available connectors.
- Snap the center console trim (1) into the clamps (2) .
Follow-up work
- Refer to INSTALLING THE VENTILATION GRILLE IN THE REAR .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to INSTALLING THE REAR FOOTWELL LIGHTING .
