Body Equipment (1 Of 2) -- Repair (IX)
>>
51 16 Mirrors, Consoles, Interior Trim
>>
51 16 163 Removing and installing rear center console trim
>>
Installing the rear center console trim
Installing the rear center console trim
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Protect working area.
Handle tools and components carefully.

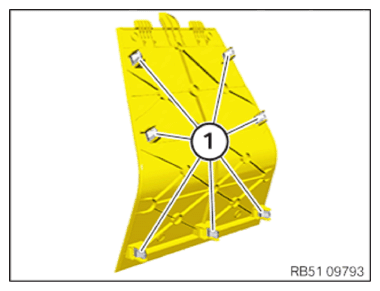

Check the clamps
(1)
and replace if necessary.
Courtesy of BMW OF NORTH AMERICA, INC.

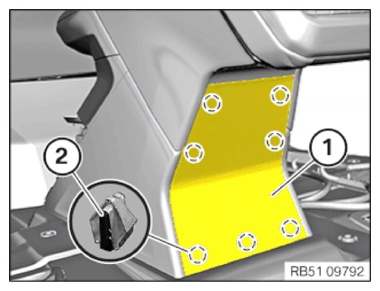

Feed in the center console trim
(1)
at the top and engage it at clamps
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
