63 31 Interior Lighting
>>
63 31 035 Removing and installing the rear footwell lighting
>>
Installing the rear footwell lighting
Installing the rear footwell lighting

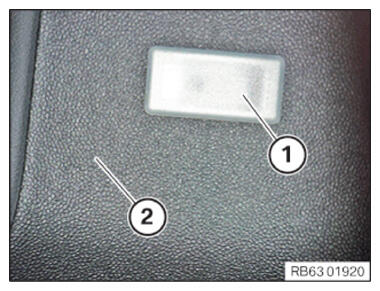

Position the footwell lighting
(1)
on the rear center console trim
(2)
and clip it in.
Connect the associated connector.
Courtesy of BMW OF NORTH AMERICA, INC.
