Installing the seal from the windshield panel

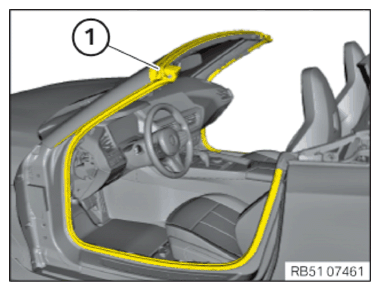

- Coat the seal on the windshield panel (1) in the area of the windshield at top with a suitable lubricant.
- Carefully feed in the seal on the windshield panel (1) at the windshield at top starting at the side.
- Insert the seal on the windshield panel (1) on the body on the side at left and right.
- Make sure the seal on the windshield panel is fitted properly 1 on all adjacent parts.

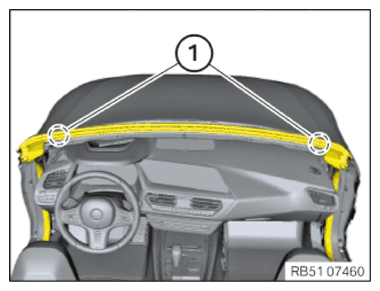

- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATION
Windshield panel seal on body Screw tightening torque 2.5 Nm
NOTE:
Perform the steps on the right and left side.

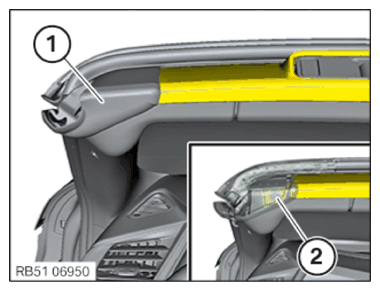

- Slightly lever out the seal (1)
and tighten the screw underneath (2)
.TIGHTENING TORQUE SPECIFICATION
Windshield panel trim to A-pillar Screw tightening torque 2.5 Nm
Follow-up work
- Refer to INSTALLING THE TRIM PANEL FOR THE LOWER LEFT AND RIGHT BODY COLUMN .
- Refer to INSTALLING LEFT AND RIGHT REAR SIDE TRIM PANEL .
- Refer to INSTALLING THE TRIM PANEL FOR THE LEFT AND RIGHT BODY PILLAR .
- Refer to INSTALLING THE LEFT AND RIGHT SEATBELT FINISHER STRIP .
- Refer to INSTALLING THE TRIM PANEL FOR THE TOP ROLLOVER PROTECTION .
- Refer to INSTALLING THE STORAGE NET .
- Refer to INSTALLING BOTTOM A-PILLAR TRIM PANEL .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING THE BOTTOM RIGHT A-PILLAR TRIM PANEL .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to INSTALLING LEFT AND RIGHT DOOR SILL COVER STRIP .
- Refer to INSTALLING THE TRIM ON THE LEFT AND RIGHT DASHBOARD .
- Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to INSTALLING THE TOP WINDSHIELD PANEL TRIM (BOTTOM PART) .
- Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
- Refer to INSTALLING THE COUNTER SUPPORT FOR THE SUN VISOR .
- Refer to INSTALLING THE LEFT AND RIGHT VANITY MIRROR LIGHT .
