Installing bottom A-pillar trim panel

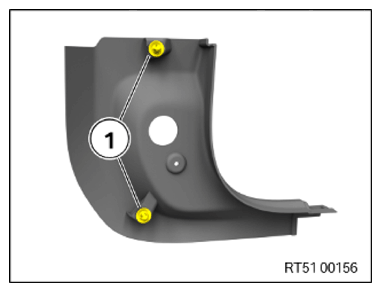

• Check the clips (1)  for damage.

  Defective or missing clips (1)  must be replaced.

  Courtesy of BMW OF NORTH AMERICA, INC.

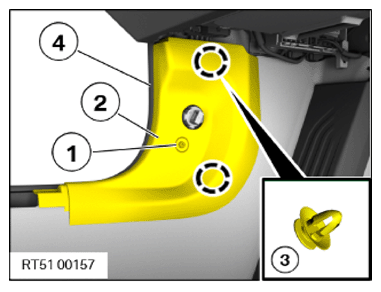

• Position the bottom of A-pillar trim panel (2)  and clip it into clips (3)  .
• Make sure the A-pillar trim panel (2)  is positioned correctly at the bottom of the edge protection (4)  .
• Tighten down screw (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

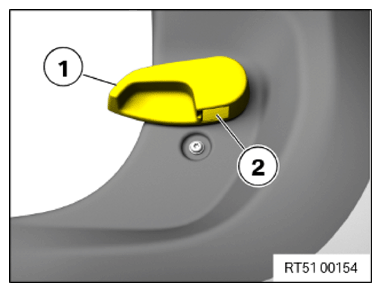

• Mount release lever (1)  for the hood release.
• Clip in the locking wedge (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING THE DOOR SILL COVER STRIP .
