Removing the front carpet
Preliminary work
- Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .
- Refer to REMOVING RIGHT FOOTWELL TRIM .
- Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
- Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to REMOVING THE CENTER STACK TRIM .
- Refer to REMOVING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
- Refer to REMOVING THE CENTER CONSOLE .
- Refer to REMOVING THE FRONT SEATS ON THE LEFT AND RIGHT .
- Refer to REMOVING BOTH DOOR SILL COVER STRIPS .
- Refer to REMOVING LOWERING A-PILLAR TRIM PANEL .
- Refer to REMOVING THE LOWER RIGHT A-PILLAR TRIM PANEL .
- Refer to REMOVING THE STORAGE NET .
- Refer to REMOVING THE TRIM PANEL FOR THE TOP ROLLOVER PROTECTION .
- Refer to REMOVING BOTH SEAT BELT FINISHER STRIP ELEMENTS .
- Refer to REMOVING BOTH TRIM PANELS FOR THE BODY PILLAR .
- Refer to REMOVING BOTH REAR SIDE TRIM PANELS .
- Refer to REMOVING THE TRIM PANEL FOR THE BOTTOM LEFT AND RIGHT BODY PILLAR .
- Refer to REMOVING ACCELERATOR PEDAL MODULE .
- Refer to REMOVING THE AIRBAG CONTROL UNIT .
- Unclip the wiring harness (1)
from the brackets and unlock and separate the plug connectors.

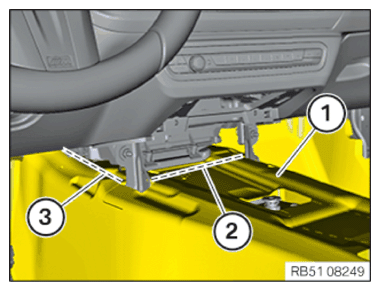

- Cut the carpet (1) along the dashed line (2) at the heating and air-conditioning unit.
- Cut the carpet (1)
along the dashed line (3)
to the left and right of the heating and air-conditioning unit.
- Remove the carpet (1)
from the car.
