(Removing both rear side trim panels)
NOTE:
Description is for left component only.
Procedure on the right side is identical.

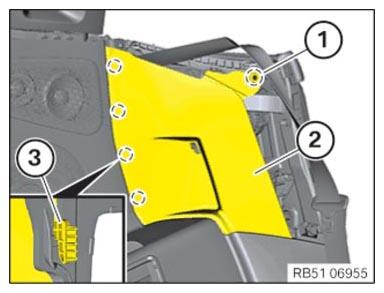

- Loosen screw (1).
- Feed out the rear side trim panel (2) upwards and hang it on the hooks (3).
Courtesy of BMW OF NORTH AMERICA, INC.
|
