(Removing both door sill cover strips)

NOTE: RISK OF DAMAGE
Bending of plastic components.
Application of too much force can lead to bending of plastic components.

• Place special tool directly beside the mounting clip.
• Continue unclipping the part as soon as possible without using the tool.

NOTE: Description is for left component only. Procedure on the right side is identical.

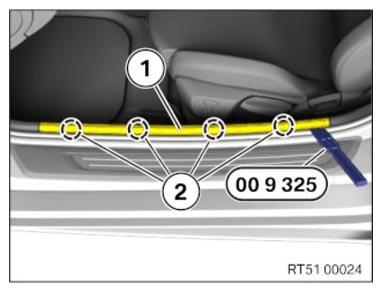

• Release the door sill cover strip (1) from the floor panel using the special tool 0 496 569 (00 9 325) at the clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

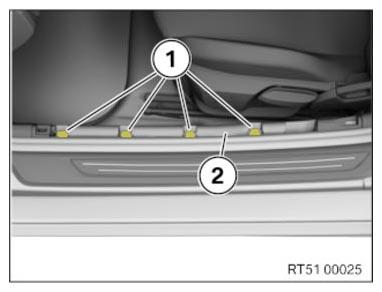

• If necessary remove the clips (1) from the floor panel (2) and insert onto the door sill cover strip.

Courtesy of BMW OF NORTH AMERICA, INC.
