(Removing the front seats on the left and right)
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
Perform the steps on the left and right side.
Removing the front strap fitting

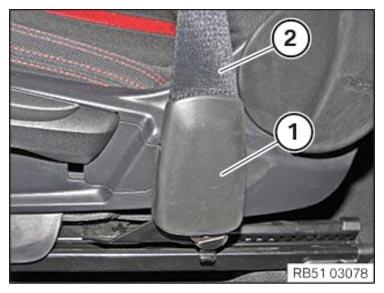

- Slide the cover (1) on the seat belt (2) upward.
- Turn the strap fitting (2) toward the rear.

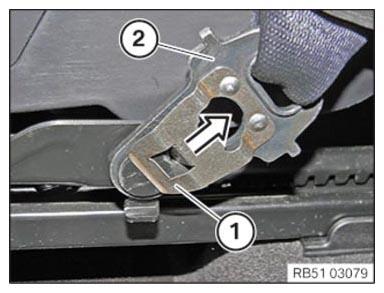

- Carefully pull the lock plate (1) outwards in the direction of arrow and simultaneously feed out the strap fitting (2) to the front.
- Pull strap fitting (2) outward to remove.

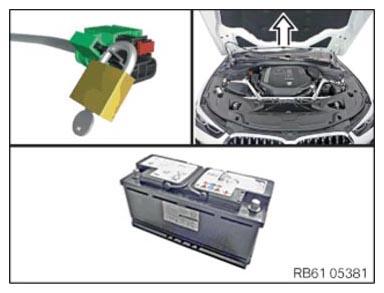

Deactivate vehicle electrical system
- Deactivate the vehicle electrical system.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
- Cover the door sill using protective covers.

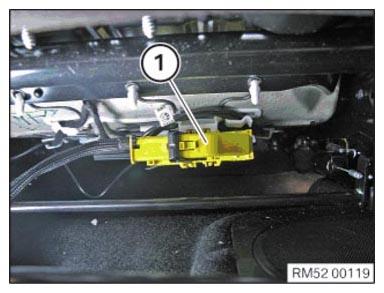

- Place the front seat fully to the rear and disconnect the plug connector (1).NOTE: RISK OF DAMAGE
Heavy component.
Heavy components can lead to injury or damage.- Remove and install heavy components with the aid of another person/other persons.
- Remove the front seat with the assistance of an support person.
