Installing the guide for the rear bumper panel at the side
NOTE:
Description is for left component only. Procedure on the right side is identical.

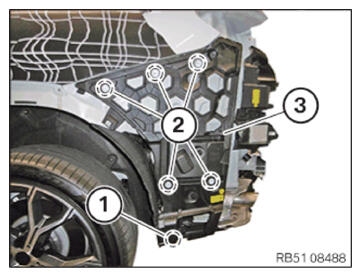

- Correctly position the guide for the rear bumper panel at the side (3).
- Tighten nuts (2).TIGHTENING TORQUES SPECIFICATION
Bumper guide, rear Nut Tightening torque 6 Nm - Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
Bumper panel, rear Hexagon screw Tightening torque 3.0 Nm
Follow-up work
- Refer to INSTALLING THE REAR BUMPER COVER .
- Refer to INSTALLING THE LEFT AND RIGHT REFLECTOR .
- Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
- Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALLING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .
- Refer to INSTALLING THE RIGHT D-PILLAR TRIM PANEL .
- Refer to INSTALLING THE COVER OF THE RIGHT BELT FEED TRIM .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING THE BATTERY COVER .
- Refer to INSTALLING THE COVER OF THE SIDE MEMBER ON THE RIGHT .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALLING THE STORAGE SHELF .
