Installing the right D-pillar trim panel

Installing D-pillar trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

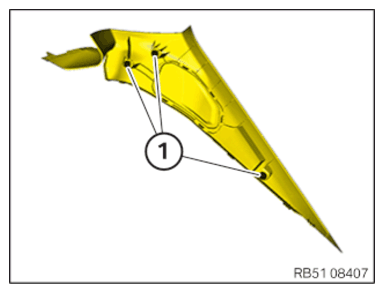

Check if the clips (1) are damaged and if available.
Damaged or missing clips (1) must be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.

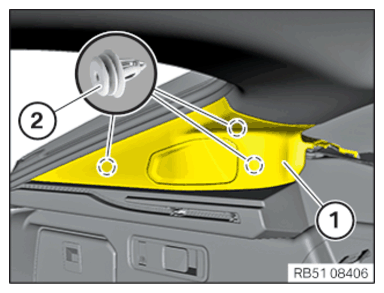

Correctly position D-pillar trim panel (1) and clip in at the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.
