Installing the left and right reflector

NOTE: Perform the steps on the left and right side.

Installing rear reflector

NOTE: Description is for left component only. Procedure on the right side is identical.

Check

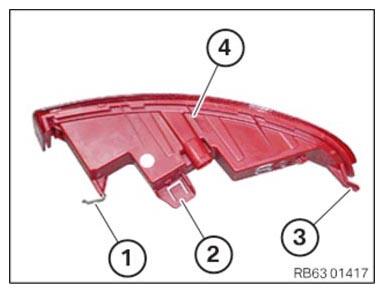

Check the mounting clip (1), detents (2) and the guide (3) on the rear reflector (4) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The mounting clip (1), detents (2) or the guide (3) are damaged.

Measure

Parts: Rear reflector

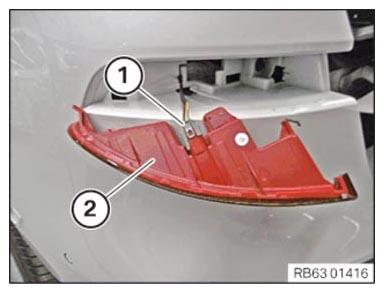

Connect connector (1) at rear reflector (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

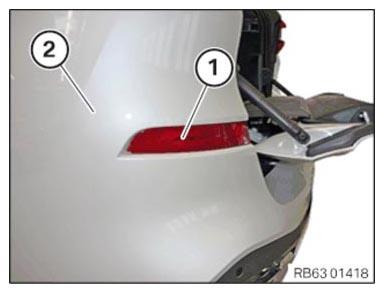

Insert the rear reflector (1) on the side into the bumper cover and engage.

Courtesy of BMW OF NORTH AMERICA, INC.
