Installing the cover of the side member on the right

Installing cover for the side member

NOTE: Description is for left component only. Procedure on the right side is identical.

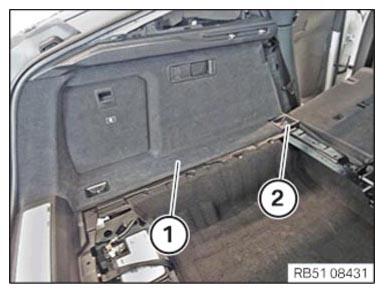

Position the cover (1) for the side member and cover (2) for the lashing eye and clip into place.

Courtesy of BMW OF NORTH AMERICA, INC.
