Installing the trim on the side bumper panel

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

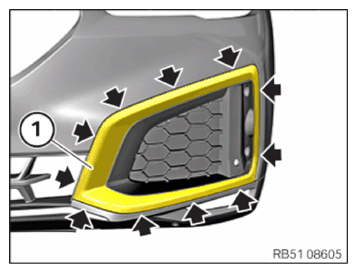

Install the trim (1) and snap it into the rear detents (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING FOG LIGHT SUPPORT .
Refer to INSTALLING BUMPER COVER, FRONT .
Refer to INSTALLING THE FRONT PART OF THE LEFT FRONT AND RIGHT WHEEL ARCH COVER (PARTIALLY REMOVED) .
Refer to INSTALLING THE LEFT AND RIGHT FRONT WHEEL ARCH TRIM (PARTIALLY REMOVED) .
Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
Refer to PUTTING THE FRONT RADAR SENSORS INTO OPERATION .
