Installing the headlining (with panorama roof)
Precondition
The front seats have been fully adjusted towards the bottom.
The front seat backrests have been fully adjusted towards the rear.
The rear seat backrest is folded toward the front.
NOTE:
RISK OF DAMAGE
Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.
Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.
- Carry out tasks with a second person to assist.
- Support the headlining at the front and back.

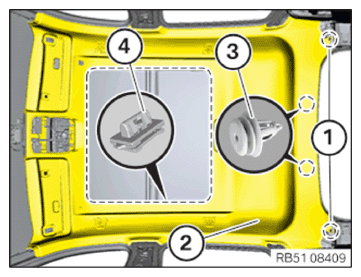

- Guide in the headlining (2) from the front into the vehicle.
- Lift the headlining (2) and guide it in to each edge protection.
- Clip in the headlining (2) in the area of the dotted line on the sliding/tilting sunroof case and the clamps (4) .
- Clip headlining (2)
to the clips (3)
.
Ensure the headlining (2) is correctly positioned on the seal for the tailgate.
- Secure expanding rivet (1)
.
- Clip headlining to the clips (2) .
- Connect connectors (1)
and lock.
- Connect the connector (1)
in the D-pillar (2)
area at left and lock.
Follow-up work
- Refer to REPLACING THE SPACER .
- Refer to CHECKING THE EXPANDING FOAM TAPE ON THE WINDSHIELD .
- Refer to CHECKING THE COVER ON THE WINDSHIELD .
- Refer to INSTALLING WINDSHIELD .
- Refer to CONNECTING CONNECTOR TO THE RAIN-LIGHT-SOLAR-CONDENSATION SENSOR .
- Refer to INSTALLING KAFAS CAMERA (MID VARIANT) .
- Refer to INSTALLING KAFAS CAMERA (HIGH VERSION) .
- Refer to INSTALLING THE INTERIOR REARVIEW MIRROR .
- Refer to INSTALLING THE COVERS FOR THE INTERIOR MIRROR .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING LEFT AND RIGHT GUTTER STRIP ON THE WINDSHIELD .
- Refer to INSTALLING D-PILLAR TRIM PANEL ON LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
- Refer to INSTALLING THE COVER OF THE SEAT BELT FINISHER STRIP, LEFT AND RIGHT .
- Refer to PARTIALLY INSTALLING THE B-PILLAR TRIM PANELS AT THE TOP LEFT AND RIGHT .
- Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
- Refer to INSTALLING COUNTER SUPPORTS FOR THE LEFT AND RIGHT SUN VISOR .
- Refer to INSTALLING THE LEFT AND RIGHT SUN VISOR .
- Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
- Refer to CALIBRATE KAFAS CAMERA .
