Body Equipment -- Repair (G06) (1 Of 2)
>>
51 31 Front And Rear Window
>>
51 31 000 Removing and installing windshield
>>
Replacing the spacer
Replacing the spacer

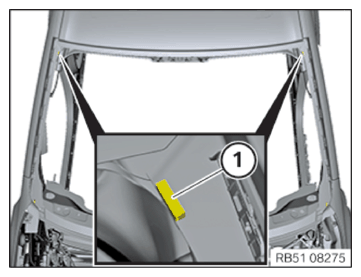

Completely remove the spacers
(1)
.
Replace the spacer
(1)
.
Parts:
Spacer
Glue the spacer (triangular)
(1)
into place.
Courtesy of BMW OF NORTH AMERICA, INC.

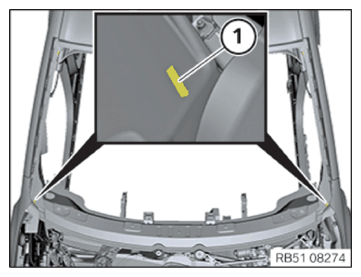

Completely remove the spacers
(1)
.
Replace the spacer
(1)
.
Parts:
Spacer
Glue the spacer (square)
(1)
into place.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
