Install the wiring harness section of the transmission wiring harness

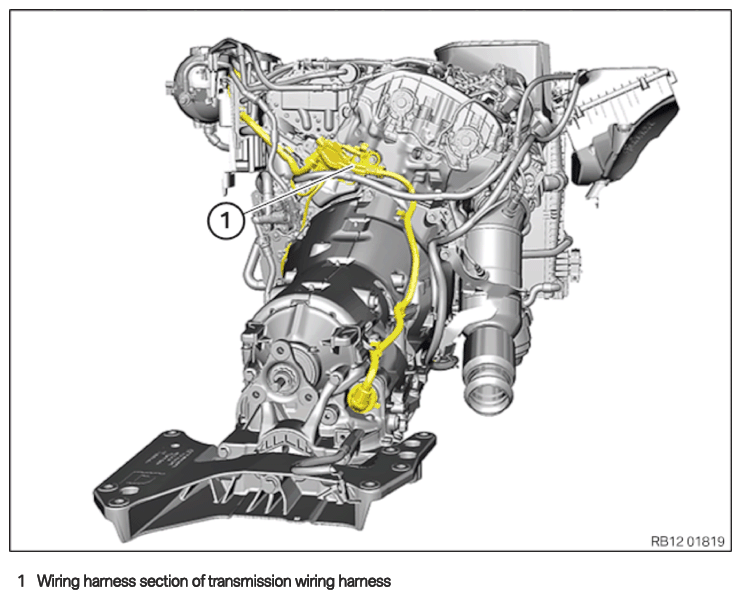

Wiring harness section of transmission wiring harness
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

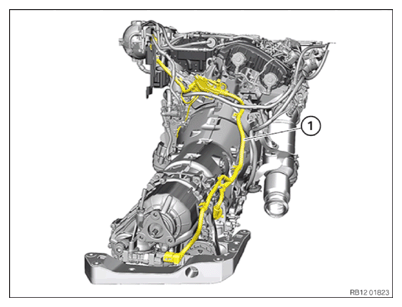

- Insert and install the wiring harness (1)
for the transmission module.

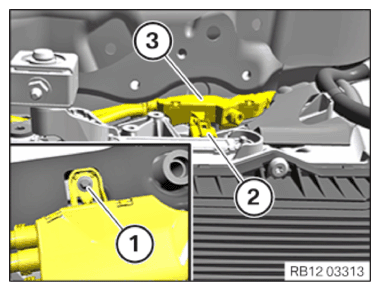

- Feed in and install the wiring harness section (3) of the transmission wiring harness.
- Connect connectors (2)
and lock.
The connector (2) must engage audibly.
- Tighten down screw (1)
.TIGHTENING TORQUE SPECIFICATIONS

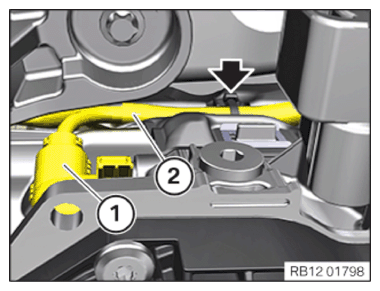

Grounding cable/wiring harness section to transmission BM6 Tightening torque 8 Nm - Guide in and install wiring harness section (2) of the transmission wiring harness.
- Secure clamp (arrow).

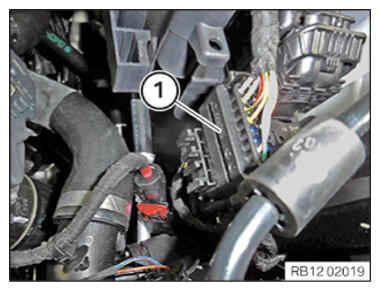

- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
Fastening the transmission

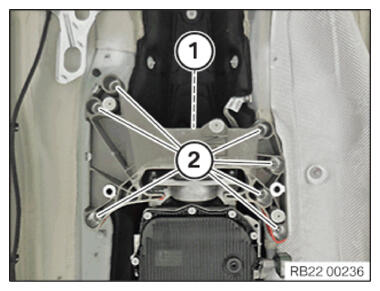

- Lift the transmission cross member (1) with the transmission in the installation position.
- Tighten down screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Transmission cross member to body M8 Tightening torque 19 Nm - Loosening the luggage strap (1) .

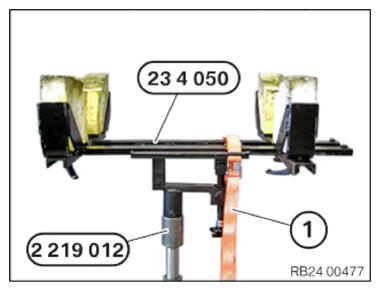

- Remove special tools 2 219 012
and 0 495 498 (23 4 050)
.
- Secure the cable with the clamps (arrows).

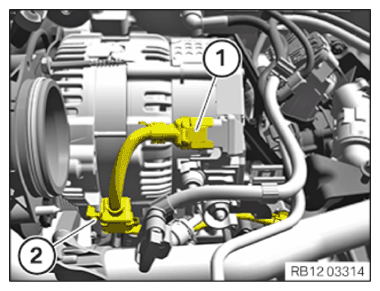

- Connect the connector (1)
to the starter and lock audibly.

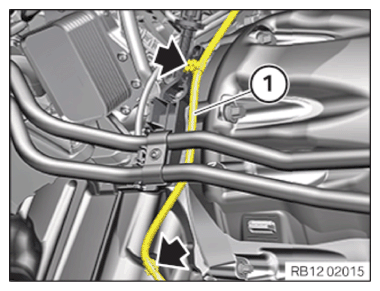

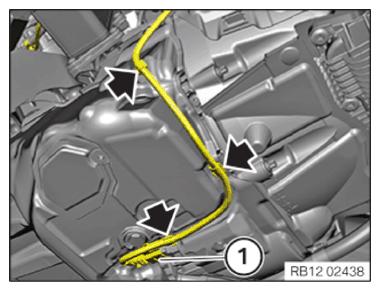

- Feed in and install the wiring harness section (1) of the transmission wiring harness.
- Secure the clamps (arrows).

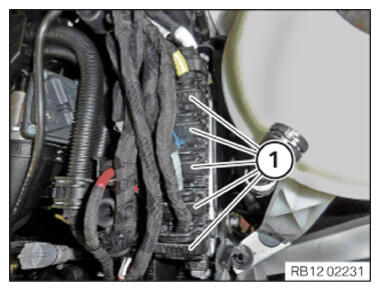

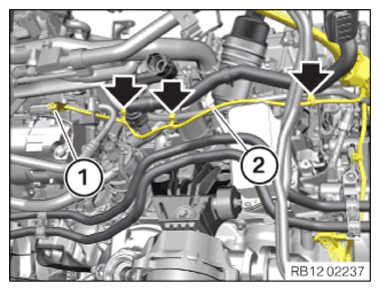

- Feed in and install the wiring harness section (2) of the transmission wiring harness.
- Secure clamp (arrow).
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Secure the clamp (2) .
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.

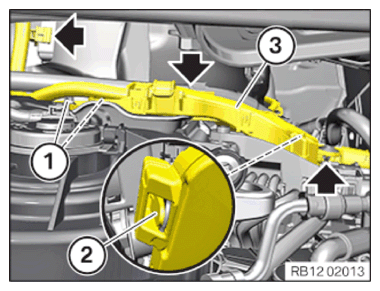

- Feed in and install the wiring harness section (3) of the transmission wiring harness.
- Make sure the locking mechanism (2) engages audibly.
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Cable bracket on rear cylinder head/transmission M6x20 Tightening torque 10 Nm - Secure the clamps (arrows).

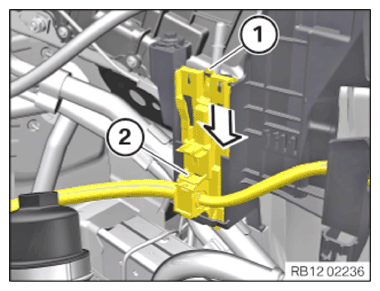

- Insert cable clip (2)
in direction of arrow and install.
he lock (1) must audibly engage.
- Guide in and lock cable clip (3)
.
The cable clip (3) must engage audibly.

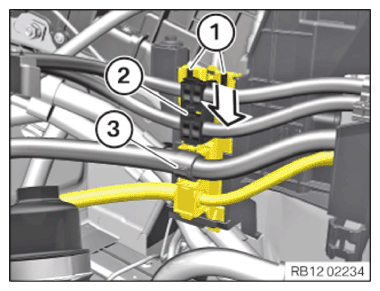

- Insert cable clip (2)
in direction of arrow and install.
The locks (1) must engage audibly.

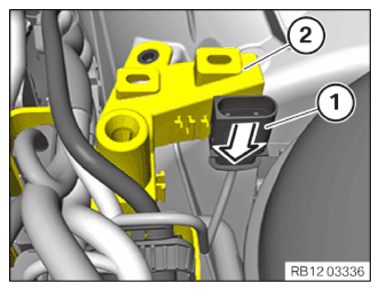

- Feed in the connector (1)
in direction of the arrow to the holder (2)
for the DME control unit and lock it.
The connector (1) must engage audibly.
- Fasten the cable clip (3) .

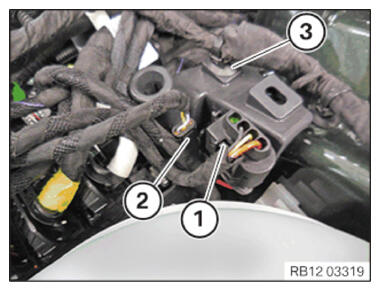

- Connect connectors (2)
and lock.
The connector (2) must engage audibly.
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.

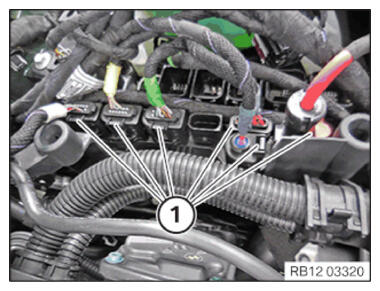

- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
