Install spring suspension strut

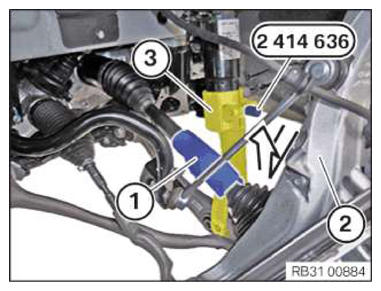

• Spread spring strut holder (3) using the special tool 0 494 541 (31 2 230)  .
• Protecting the output shaft from damage with a towel is mandatory  (1).
• Release swivel bearing (2) from the attachment on the upper wishbone.
• Feed in the spring strut holder (3) in the arrow direction and use the gap to align it with the positioning pin on the suspension strut.
• The spring strut holder (3) must  be pushed upwards onto the spring strut to the stop.
• Remove towel (1).

Secure the swivel bearing

Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the swivel bearing (1) by using the special tool 2 413 317 to protect it from tilting outwards.

  Swivel bearing (1) must not hang down from the brake hose.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the special tool 0 494 541 (31 2 230)  .

  The spring strut holder (1) must  be pushed up to the limit position on the spring strut!

Courtesy of BMW OF NORTH AMERICA, INC.

Checking the installation position of the spring strut holder

• Version A:

  Check the installation position of the spring strut holder (1) for the spring strut (2).

  The spring strut holder (1) must be correctly aligned to the spring strut (3) on the basis of the color coding (2).

  The color coding (3) runs in the extension of the edge (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

  Check the installation position of the spring strut holder (1) for the spring strut (2).

  The spring strut holder (1) must be correctly aligned to the spring strut (3) on the basis of the color coding (2).

  The color coding (3) runs in the extension of the edge (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the screw (1).

  Parts  : Screw

• Screw the bolt (1) into the spring strut holder (2) and tighten it.
  TIGHTENING TORQUES SPECIFICATION



  Spring strut holder on front spring strut
  M10x60 Replace screw.	Snug torque	38 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Tighten the screw connection in the NORMAL POSITION .
• Position spring strut holder on wishbone.
• Replace the screw (3) and the nut (1).

  Parts  : Nut

  Parts  : Screw

• Punch in the swivel bearing (2) at the front towards the inner.
• Insert the screw (3).
• Tighten the nut (1) in the NORMAL POSITION .
  TIGHTENING TORQUES SPECIFICATION



  Spring strut holder to lower wishbone
  M14 Replace screw and nut. Tighten in normal position.	Snug torque	165 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FASTENING THE WISHBONE TO THE TOP OF THE SWIVEL BEARING .
• Refer to FASTENING THE BRAKE HOSE AND THE CABLE .
• Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
• Refer to ATTACHING THE FRONT LEFT WHEEL .
