Fastening the wishbone to the top of the swivel bearing

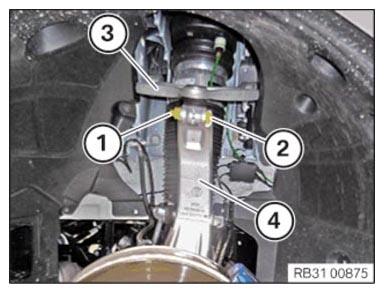

- Position the pin of the top control arm (3) in the bore of the swivel bearing (4).
- Replace the screw (2) and the nut (1).
Parts: Nut
Parts: Screw
- Insert screw (2).
- Tighten nut (1).TIGHTENING TORQUE SPECIFICATION
Upper wishbone to swivel bearing M10
Replace screw and nut.Tightening torque 56 Nm - Remove the special tool for attaching the swivel bearing.
