Fastening the brake hose and the cable
Fastening the brake hose and the cable

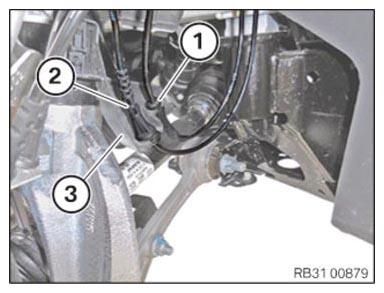

Attach the cable (2) on the holder (3).
NOTE:
Only perform the operation on the left side.
Fasten the cable (1) onto the holder (3).
Courtesy of BMW OF NORTH AMERICA, INC.

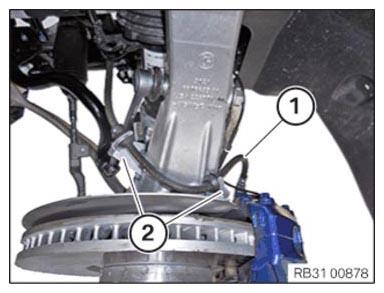

Fasten brake hose (1) to the brackets (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
