Installing the engine wiring harness for sensor system 2

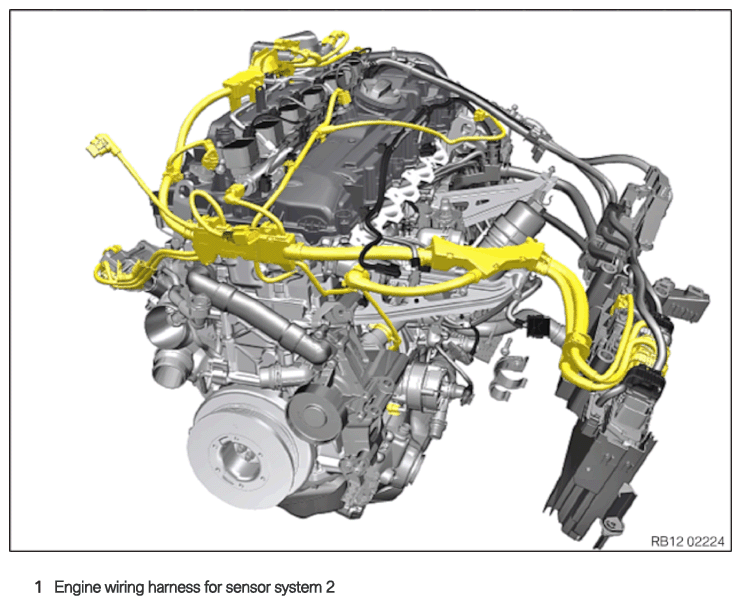

Engine wiring harness for sensor system 2
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
- Route all cables without abrasions, do not trap and crush.
- Guide in and install the engine wiring harness (1) for sensor system 2.
- Guide in and install the engine wiring harness (6) for sensor system 2.
The locks (arrows) must engage audibly.
- Feed in differential pressure sensor (5) and position.
- Tighten down screw (4).TIGHTENING TORQUE SPECIFICATIONS
Differential pressure sensor to holder TS6X18 Tightening torque
3.5 Nm - Connect connectors (3) and lock.
The connector (3) must engage audibly.
- Connect the connector (2) to the engine wiring harness (6) for sensor system 2 and lock.
The connectors (2) must engage audibly.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Threading in and installing engine wiring harness (2) for sensor system 2.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Threading in and installing engine wiring harness (5) for sensor system 2.
- Ensure that the locking mechanisms (4) engage audibly.
- Tighten nut (3).TIGHTENING TORQUE SPECIFICATIONS
Front ground cable to cylinder head M6 tightening torque
8 Nm - Connect connectors (2) and lock.
The connector (2) must engage audibly.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Feed in and position auxiliary coolant pump (4).
- Feed in and position retaining bracket (3).
- Tighten nut (2).TIGHTENING TORQUE SPECIFICATIONS
Electric coolant pump to holder M6 tightening torque
8 Nm - Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Guide in and install the engine wiring harness (4) for sensor system 2.
- Secure clamps (3).
- Connect connector (1) with the electric coolant pump (2) and lock.
The connector (1) must engage audibly.
- Fasten the cable bracket (1) to the bracket (2).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
Follow-up work
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to INSTALLING THE LOW-TEMPERATURE COOLANT EXPANSION TANK .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE CLEAN AIR PIPE AND THE RESONATOR .
- Refer to INSTALLING THE INTAKE FILTER HOUSING (TENSION STRUT REMOVED ON SHOCK TOWER) .
- Refer to INSTALLING THE ENGINE CONTROL UNIT COVER .
- Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
- Refer to INSTALLING THE TENSION STRUT ON THE RIGHT SHOCK TOWER .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
