Install front underbody protection
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
- Insert front underbody protection (1) and position correctly.
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Undershield/frame | ||
|---|---|---|
| Hexagon screw | tightening torque | 3 Nm |
Installing the front skid plate
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

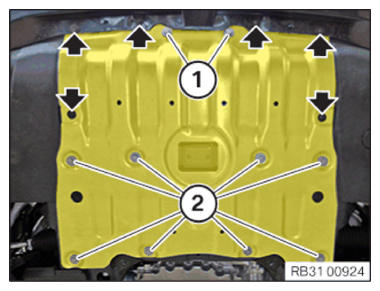

- Feed in and position the front skid plate.
- Tighten down screws (2) and (1).
TIGHTENING TORQUE SPECIFICATIONS
| Skid plate at the front to front subframe | ||
|---|---|---|
| M8 | Tightening torque | 19 Nm |
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Undershield/frame | ||
|---|---|---|
| Hexagon screw | tightening torque | 3 Nm |
