Install tension strut on left and right shock tower
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the tension strut on the right shock tower
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.

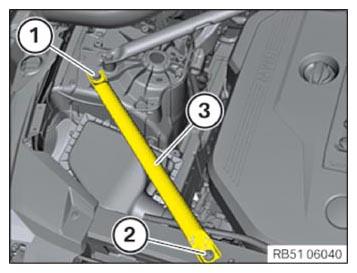

- (3) Install tension strut on shock tower.
- Replace the screw (1).
Parts: Screw
- Tighten screw (1) with the special tool 0 490 504 (00 9 120)
.TIGHTENING TORQUE SPECIFICATIONS
Tension strut to shock tower M10x55 screw
Replace screwsJoining torque
Angle of rotation56 Nm
90° - Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATIONS
| Tension strut on the rear cross connection | ||
| M8x30 screw | Tightening torque | 28 Nm |
Repair thread on the spring bolt
- Repair the damaged thread with a Helicoil thread insert.
CONSUMABLE SPECIFICATIONS
| Helicoil thread insert | M10x25 mm | 33 30 6 782 756 |
